Description

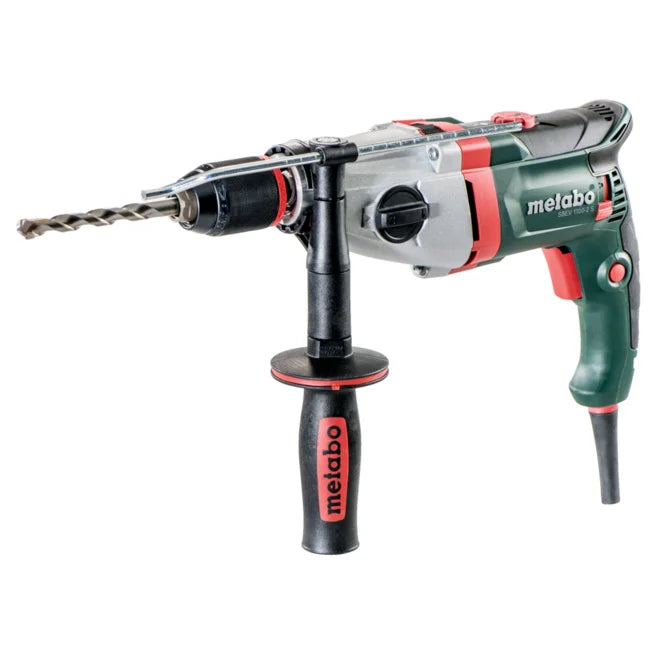

xSBEV 1100-2 S (600784590) Impact Drill, Plastic Carry Case.
◾Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load

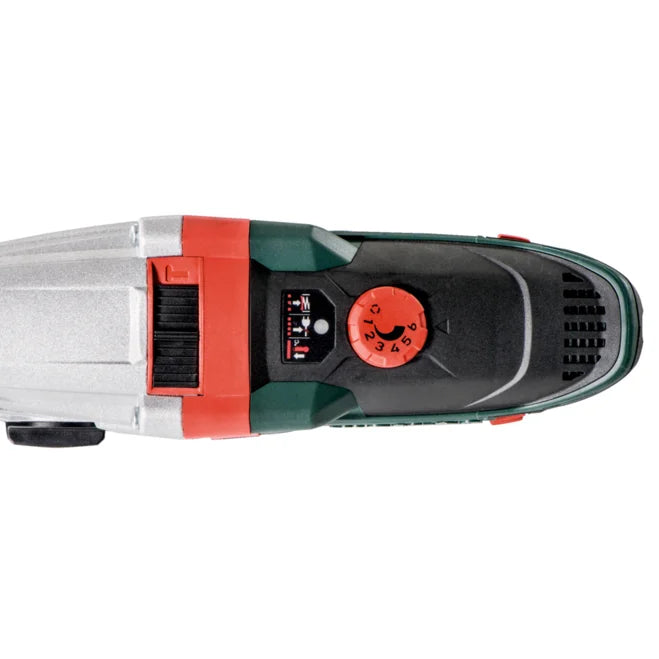

◾Thumbwheel for Speed Preselection
◾Selectable "impuls" mode for removal of stubborn screws and for spot-drilling on smooth surfaces
◾Robust die cast aluminium gear housing for optimum heat dissipation and long service life
◾Rotating carbon brush bridge for maximum performance even in anti-clockwise operation, e.g. for the removal of stubborn screws
◾Metabo Marathon-motor with dust protection for long service life
◾Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the tool stop unexpectedly
◾Forward and reverse rotation
◾Keyless chuck and spindle stop gear for convenient one-handed tool change
◾Spindle with hexagonal recess for screwdriver bits for working without chuck
◾Overload protection: protects the motor from overheating
◾Restart protection: prevents unintentional start-up after power supply interruption
◾Cable-protecting ball joint for optimal freedom of motion when working
◾Wear Indication for Carbon Brush
Characteristics
Rated input power 1100 W
Output power 580 W
Maximum torque 42 / 15 Nm
Drill-Ø masonry 24 mm
Drill-Ø concrete 22 mm
Drill Ø steel 16 / 10 mm
Drill-Ø soft wood 40 / 25 mm
No-load speed 0 - 1100 / 0 - 3100 rpm
Revolutions at rated load 1100 / 3100 rpm
Maximum impact rate 58900 bpm
Gears 2
Chuck capacity 1.5 - 13 mm
Collar diameter 43 mm
Drill spindle with hexagonal recess 6.35 mm
Drill spindle thread 1/2 " - 20 UNF
Chuck clamping type Quick-action Keyless Chuck
Weight (without power cable) 2.8 kg
Vibration
Drilling in metal 4.2 m/s²
Uncertainty of measurement K 1.5 m/s²
Impact drilling concrete 17 m/s²
Uncertainty of measurement K 1.5 m/s²
Noise emission
Sound pressure level 103 dB(A)
Sound power level (LwA) 114 dB(A)
Uncertainty of measurement K 3 dB(A)
