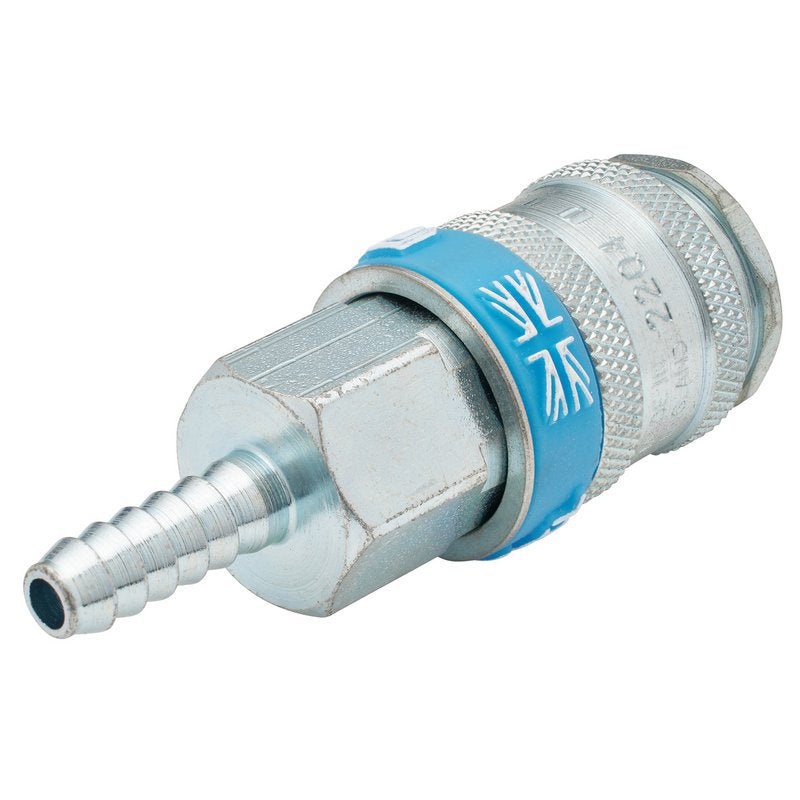

1/4 TAIL TO EURO FEMALE AIR LINE FITTING

For heavy duty high flow applications
Tested to over 1million cycles
Connects to most popular and European adaptor profiles (Cejn, Rectus etc.)
Zinc passivated to significantly improve corrosion resistance
Hard wearing steel construction, Sold loose.
Flow capacity at 6 bar inlet and
0.5bar pressure drop: 78cfm (2200L/min)
Max. working pressure: 500psi (35bar)
Test pressure: 725psi (50bar)
Max. burst pressure: 2030psi (140bar)
Temp. range: -40 to 100°C
Nominal flow diameter: 7.4mm
